Melborn Hilborn-Style Injector Air Scoop – Mechanical & EFI

The Melborn air scoop is a tribute to two legends of mechanical fuel injection: Mel Scott and Stu Hilborn. This design merges the iconic Scott “Super Slot” scoop styling of the 1960s–70s with the proven Hilborn upright 4-hole injector base.

The inlet opening has been enlarged by 10% to precisely match the airflow area of four 3" Hilborn butterflies—while maintaining the classic Super Slot proportions. The result is a properly matched, period-correct injector scoop that bolts directly to your Hilborn system without separating from the injector base.

Whether you're building a nostalgia dragster, altered, gasser, or EFI-converted mechanical injection setup, the Melborn scoop delivers authentic vintage styling with optimized airflow performance.

Fitment

• Direct replacement for Hilborn air scoop
• Fits tall and short Hilborn upright 4-hole injectors
• Compatible with most injectors using the Hilborn six-bolt pattern
• Works with both mechanical fuel injection and EFI conversions

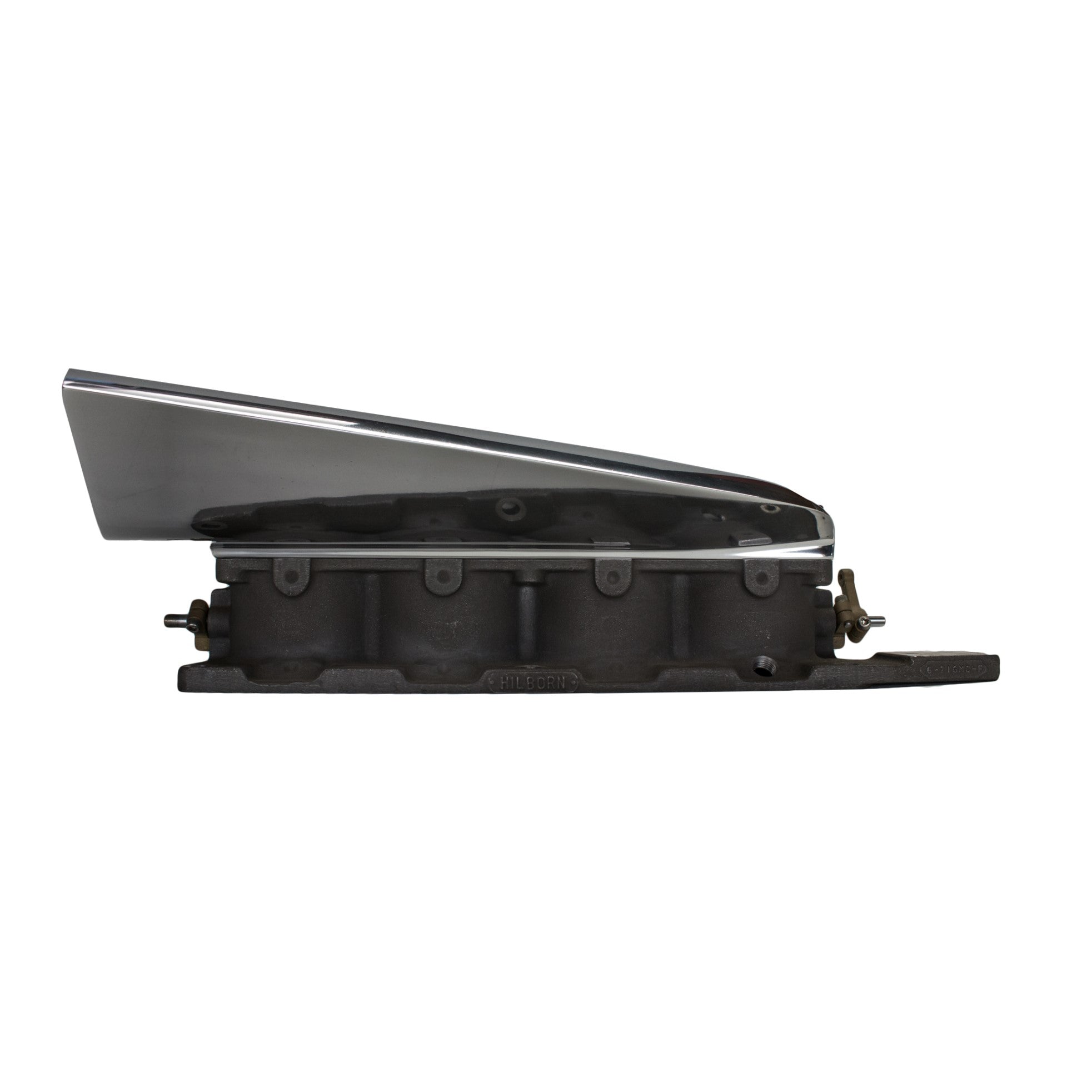

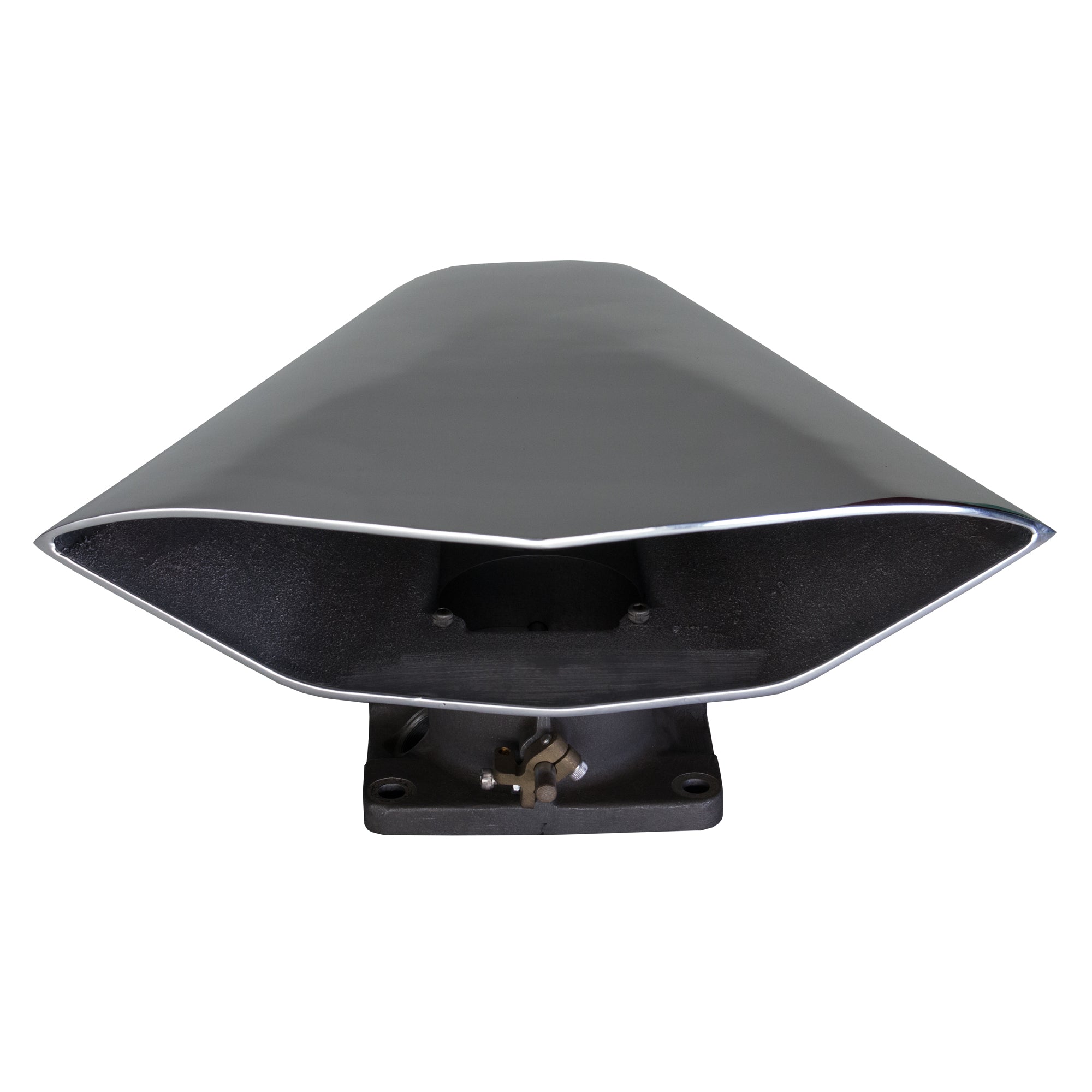

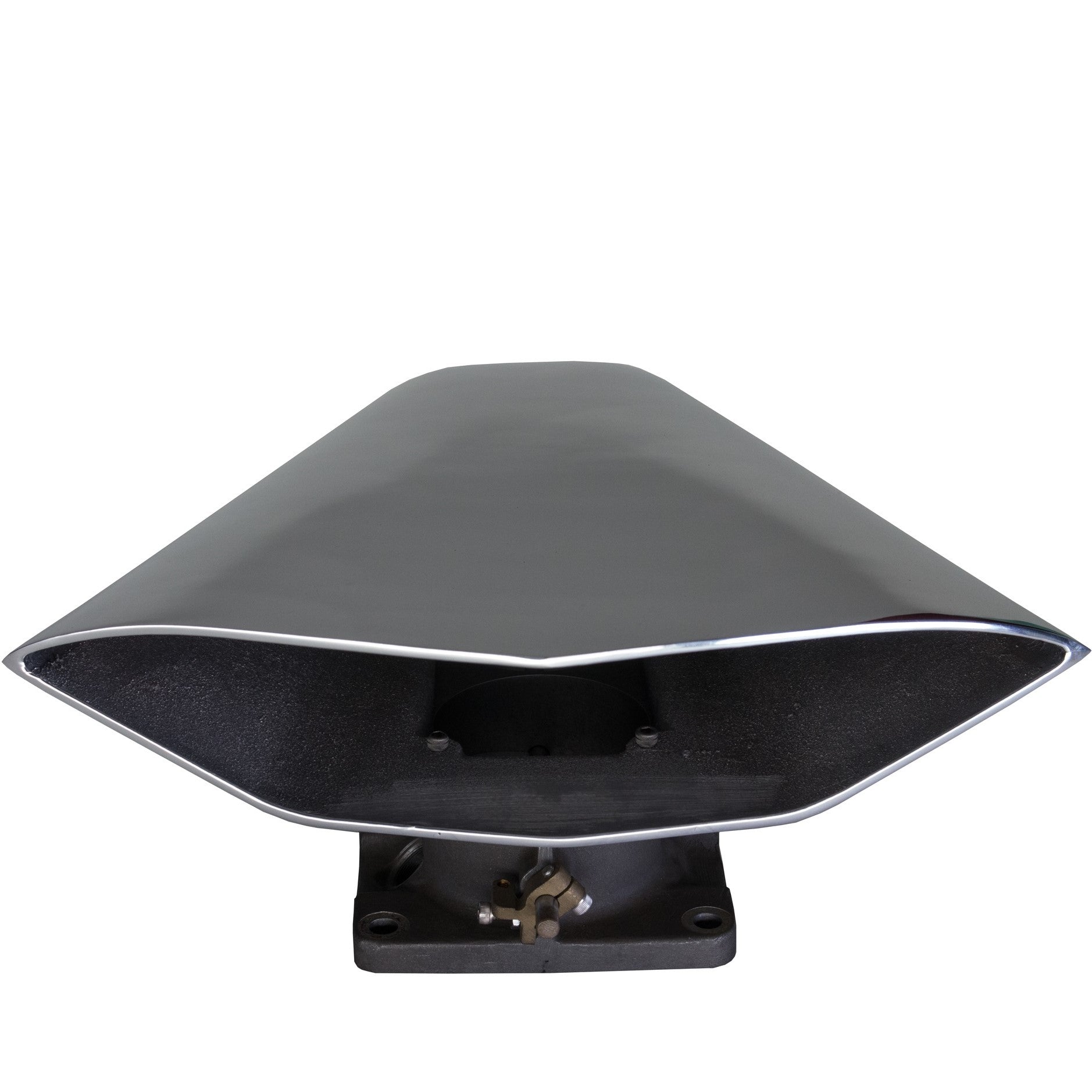

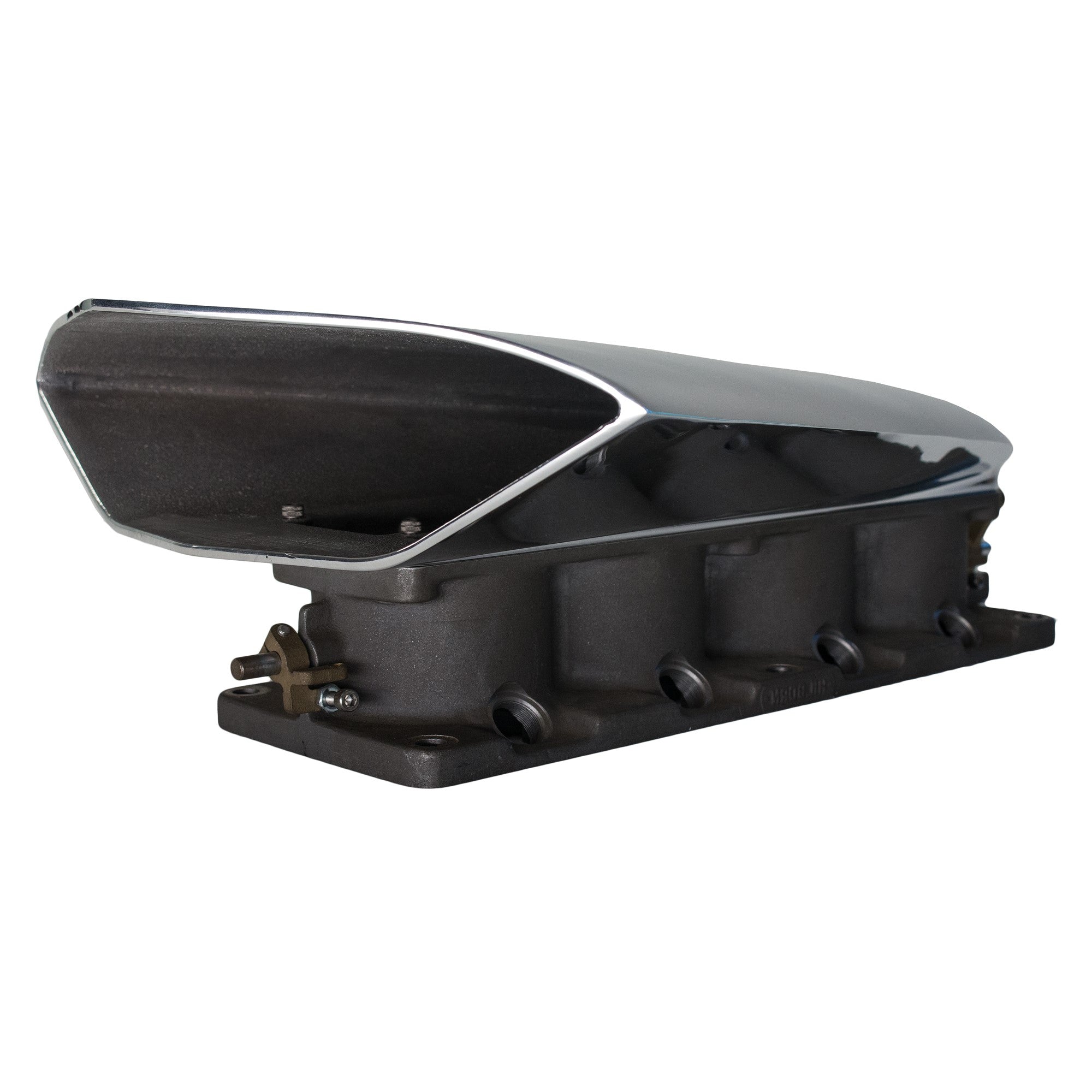

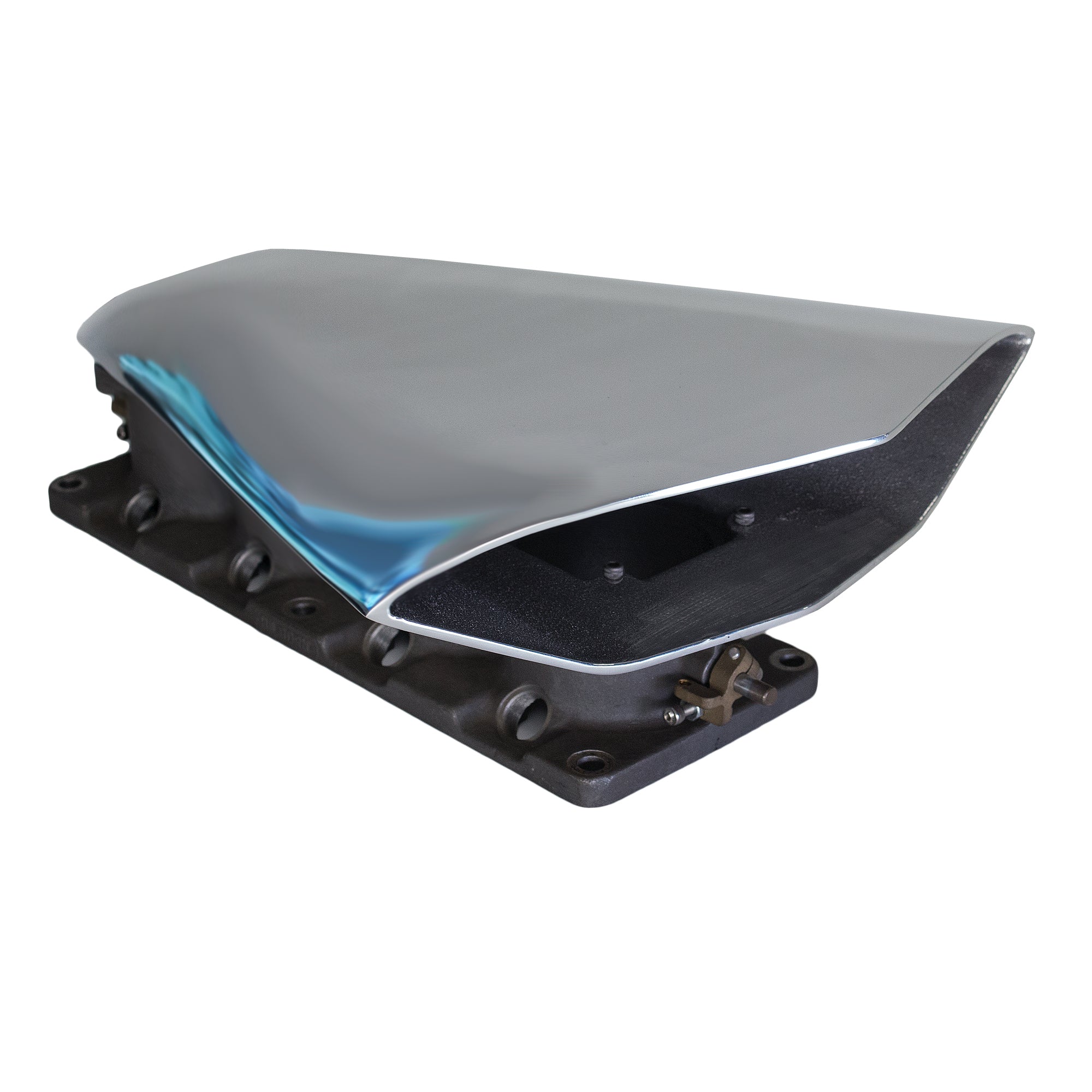

(Injector shown for display only.)

Airflow & Design

• Total inlet area: 28.8 square inches
• Hilborn butterfly area: 28.3 square inches
• Opening enlarged 10% for proper airflow matching
• Maintains classic Scott Super Slot proportions

This ensures smooth airflow while preserving period-correct aesthetics.

Dimensions

• Height: 3-3/8″
• Length: 16-3/4″
• Width (front): 13-3/4″
• Width (rear): 5-5/32″

Key Features

• Tribute design inspired by Scott and Hilborn injection systems
• Direct bolt-on replacement for Hilborn scoops
• Includes stainless mounting fasteners
• 356 heat-treated sand-cast aluminum (not die-cast)

What’s Included

• (1) Melborn air scoop body
• (4) 10-24 x 1” cap screws
• (2) 10-24 x 1-1/2” socket head screws
• (6) #10 lock washers

Manufactured in the USA

The Melborn injector scoop is ideal for nostalgia drag racing, traditional mechanical fuel injection setups, and modern EFI conversions using Hilborn-style upright injectors. It delivers authentic 1960s race-inspired styling while maintaining proper airflow geometry for performance builds.

Frequently Asked Questions

Will this fit a standard Hilborn upright injector?
Yes, it is a direct replacement for Hilborn 4-hole upright injectors using the six-bolt mounting pattern.

Does this work with EFI conversions?
Yes, it fits both mechanical fuel injection and EFI-converted Hilborn-style systems.

Is the injector base included?
No, the injector shown in photos is for display purposes only.

Is this cast or billet?
The Melborn scoop is manufactured from 356 heat-treated sand-cast aluminum.
